Rotary Damper Shaft Damper For Window Screen

  • Rotary Damper Shaft Damper For Window Screen
  • Rotary Damper Shaft Damper For Window Screen
  • Rotary Damper Shaft Damper For Window Screen
  • Rotary Damper Shaft Damper For Window Screen

Rotary Damper Shaft Damper For Window Screen

    Payment Type: T/T
    Terms of Trade: FOB
    Min. Order: 100 Piece/Pieces
    Delivery Time: 20 Days
    Packaging: Standard export package
    Transportation: Ocean,Air
    Port: Shenzhen

Basic Info

Model No.: DS18A-B

Product Description

The damping torque direction of ABD window screen is rotating on the right or the left. Window screen rotary damper shaft damper can be installed directly in the pivot. When rotary damper is used in window screen, different connectors can be selected for the damper according to the type of aluminum pipe profile. Rotary damping functions as velocity control in order to roll up window screen in accommodation. Our rotary damping is high-performance by separating clutch out from original one.When rotary damper shaft damper use in the window screen , it will keep the window screen roll up silently and slowly. ABD window screen shaft dampers are easy to install. Once installed, they are increasing equipment life and reducing maintenance expenses.

Welcome to purchase high quality and precise window screen rotary dampers from A.B.D. Equipment Co., Ltd. - one of the leading such manufacturers and suppliers. We have been specialized in this field for many years. If you are interested in any of window screen shaft dampers or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.


Rotary Damper For Window Screen


NOTE:

1. Please contact the corresponding product engineer for specific torque products.

2. Max. rotation speed: 100r/min

3. Max. circle rate: 10 cycle/min ( Clockwise360 °, 360 ° anti-clockwise for 1 cycle)

4. Operating temperature: -10~50℃

5. Storage temperature:-30~80℃

Specifications



Applied Torque(T)
(gf.cm )
401 400±60gf.cm
601 600±80gf.cm
801 800±100gf.cm
102 1000±150gf.cm
152 1500±200gf.cm

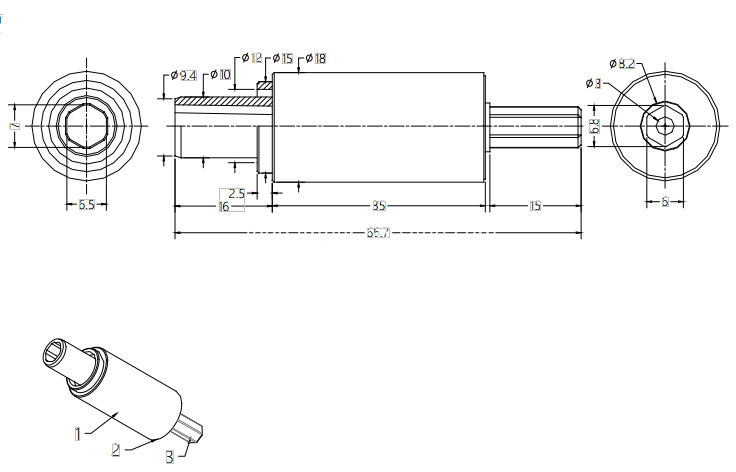

Drawings


Shaft Damper Drawing For Window Screen



Materials


3 Shaft POM
2 Cover PC+ABS
1 Shell PC+ABS
NO. Description Material

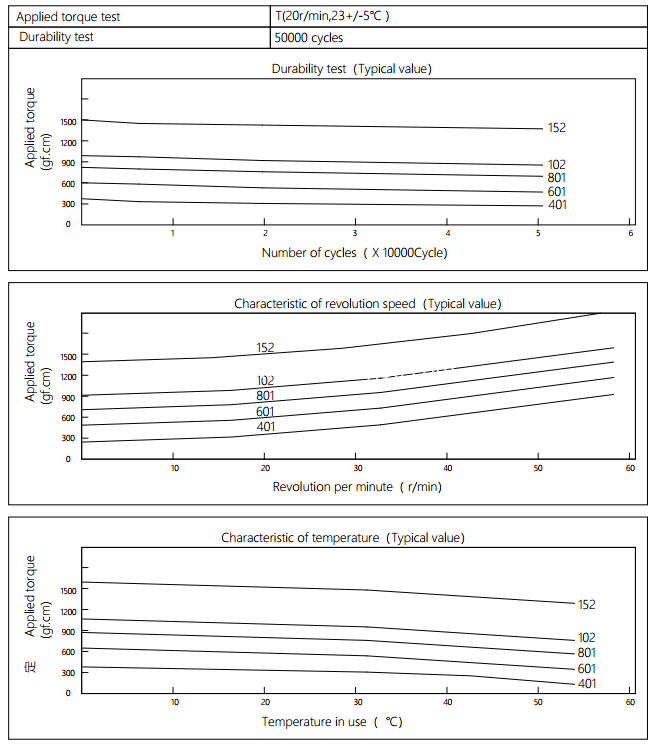

Damper Characteristics


Shaft Damper Characteristics For Window Screen



Applied torque: (T)

Test Temperature: 23+/-5℃

Rotating speed: 20r/min

Durability test Method:Clockwise 360 °, 360 ° anti-clockwise

Rotating speed: 50r/min

Test Frequency: 1cycle/min

Test Temperature: 23±5℃

Durability test cycle: 50000cycle

Test result criteria: Store in the room temperature for 24 hours or more after the test, recording to the torque T=T±30%T.

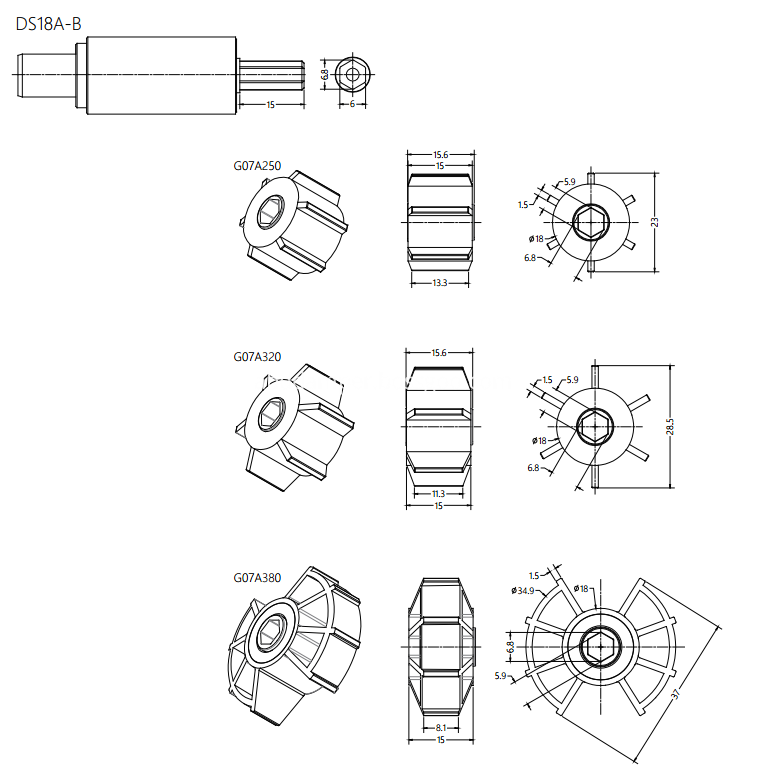

Joint specifications: G07A250~G07A380(Page.R20)


Window Screen Damper Joint

After installing the unidirectional joint, the damper torque single direction output. By adjusting the way of installation of one-way joint, the torque direction can be changed.

Damper For Window Screen Joint




After installing the unidirectional joint, the damper torque single direction output. By adjusting the way of installation of one-way joint, the torque direction can be changed.






Applications

Window screen, outdoor sun shades and many other roll up blinds, etc.



Caution

1. Do not operate without sufficient mounting strength.

2. Do not operate without an external stopper.

3. Using dampers beyond the specified.
4. Please do not use under the oil or vacuum environment.
5. Do not discard abandoned damper.
6. Radial load to the shaft.
7. Over-tightening of mounting screws.
8. Using dampers beyond the durability.
